Overview

GoAkt supports multiple clusters across datacenters. A pluggable control plane (NATS JetStream or etcd) propagates topology and placement decisions across sites. Actors can be spawned or messaged across DCs. Each datacenter runs its own cluster; the control plane coordinates which DCs are active and where to route cross-DC traffic.

​

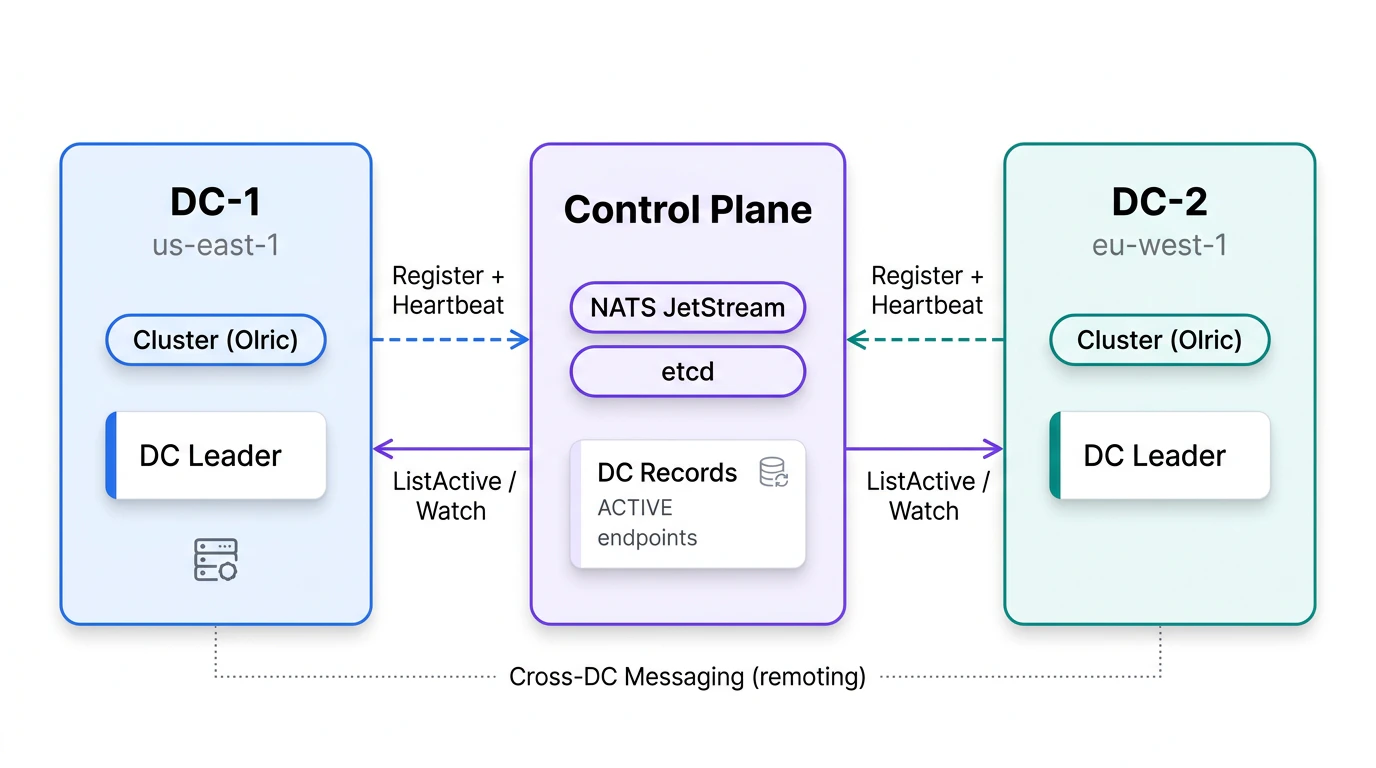

Architecture

DC-1 (us-east-1)                    Control Plane                    DC-2 (eu-west-1)
----------------                    --------------                    -----------------
Cluster (Olric)                     NATS JetStream / etcd            Cluster (Olric)
     |                                    |                                  |
     | Register + Heartbeat                | ListActive / Watch                | Register + Heartbeat
     +------------------------------------+------------------------------------+
     |                                    |                                    |
     v                                    v                                    v
Leader registers local DC          DC records (ACTIVE, endpoints)         Leader registers local DC
with cluster members'              propagated to all DCs                   with cluster members'
remoting addresses                                                         remoting addresses
  • Control plane — Manages datacenter registration, heartbeats, state transitions, and event watching. Implementations: NATS JetStream, etcd.
  • DC leader — Only the cluster leader in each DC runs the datacenter controller. It registers the local DC with the control plane using cluster members’ remoting addresses.
  • DataCenterRecord — Each DC has a record: ID, metadata (Name, Region, Zone, Labels), Endpoints (remoting addresses), State, LeaseExpiry, Version.

​
When to use

  • Geographic distribution — Run actors close to users or data in different regions.
  • Disaster recovery and failover — Replicate or fail over to another DC.
  • DC-aware placement — Spawn actors in a specific datacenter via SpawnOn with WithDataCenter.

​
Control plane backends

BackendPackageUse case
NATS JetStreamdatacenter/controlplane/natsLightweight, good for cloud-native setups
etcddatacenter/controlplane/etcdStrong consistency, Kubernetes-friendly

​
NATS JetStream

import "github.com/tochemey/goakt/v4/datacenter/controlplane/nats"

natsCfg := &nats.Config{
    URL:             "nats://127.0.0.1:4222",
    Bucket:          "goakt_datacenters",
    TTL:             30 * time.Second,
    Timeout:         5 * time.Second,
    ConnectTimeout:  5 * time.Second,
}
natsCfg.Sanitize()
cp, err := nats.NewControlPlane(natsCfg)

​
etcd

import "github.com/tochemey/goakt/v4/datacenter/controlplane/etcd"

etcdCfg := &etcd.Config{
    Endpoints:   []string{"http://127.0.0.1:2379"},
    Namespace:   "/goakt/datacenters",
    TTL:         30 * time.Second,
    DialTimeout: 5 * time.Second,
    Timeout:     5 * time.Second,
}
etcdCfg.Sanitize()
cp, err := etcd.NewControlPlane(etcdCfg)

​
Configuration

Multi-DC requires cluster mode. Configure the datacenter via WithDataCenter on the cluster config:
import (
    "github.com/tochemey/goakt/v4/actor"
    "github.com/tochemey/goakt/v4/datacenter"
    "github.com/tochemey/goakt/v4/datacenter/controlplane/nats"
)

// 1. Create control plane
natsCfg := &nats.Config{URL: "nats://127.0.0.1:4222", TTL: 30 * time.Second, ...}
natsCfg.Sanitize()
cp, _ := nats.NewControlPlane(natsCfg)

// 2. Create datacenter config
dcCfg := datacenter.NewConfig()
dcCfg.ControlPlane = cp
dcCfg.DataCenter = datacenter.DataCenter{
    Name:   "dc-1",
    Region: "us-east-1",
    Zone:   "az-a",
}

// 3. Wire into cluster config
clusterCfg := actor.NewClusterConfig().
    WithDiscovery(discoveryProvider).
    WithDataCenter(dcCfg)

system, _ := actor.NewActorSystem("app",
    actor.WithCluster(clusterCfg),
    actor.WithRemote(remoteCfg),
)
Endpoints for cross-DC routing are not set in config; the cluster leader registers the local DC with the control plane using cluster members’ remoting addresses.

​
Datacenter config options

OptionDefaultPurpose
HeartbeatInterval10sHow often the DC renews its liveness lease
CacheRefreshInterval10sHow often the DC registry cache is refreshed
MaxCacheStaleness30sMax age of cached DC data before routing is restricted
FailOnStaleCachetrueIf true, SpawnOn with WithDataCenter returns ErrDataCenterStaleRecords when cache is stale. If false, proceeds with best-effort routing.
WatchEnabledtrueUse watch-based cache refresh when the control plane supports it

​
Data center states

StateMeaning
REGISTEREDRecord exists but not yet eligible for routing
ACTIVEEligible for routing as long as lease is valid
DRAININGAvoid new placements; existing traffic may continue
INACTIVENot eligible for routing
Records are leased; Heartbeat renews the lease. Expired records should not be routed to.

​
DC-aware actor placement

Use SpawnOn with WithDataCenter to spawn an actor in a specific datacenter:
targetDC := &datacenter.DataCenter{Name: "dc-2", Region: "eu-west-1"}
err := system.SpawnOn(ctx, "analytics-worker", NewWorkerActor(), actor.WithDataCenter(targetDC))
if err != nil {
    // ErrDataCenterNotReady, ErrDataCenterStaleRecords, ErrDataCenterRecordNotFound, etc.
    return err
}
// Actor is created on a node in dc-2. Use ActorOf to resolve the PID.
pid, err := system.ActorOf(ctx, "analytics-worker")
Placement: the target is one of the target DC’s DataCenterRecord.Endpoints, selected uniformly at random. Which node runs the actor depends on what that DC registered—if it registered all nodes’ remoting addresses, the actor is placed on a random node in that DC. The actor kind must be registered on the target DC’s actor systems; otherwise the remote node returns ErrTypeNotRegistered.

​
Messaging across DCs

Once an actor is spawned (locally or in another DC), messaging is location-transparent. Use Tell, Ask, Request as usual; the framework routes to the correct node. Grains can also be addressed by identity across DCs when multi-DC is enabled: the system uses the control plane’s cached active datacenter records and attempts delivery to the first endpoint that successfully handles the request.

​
Readiness and errors

APIPurpose
system.DataCenterReady()Returns whether the multi-DC controller is operational
system.DataCenterLastRefresh()Time of last successful DC cache refresh
ErrorWhen
ErrDataCenterNotReadyController not ready; SpawnOn with WithDataCenter fails
ErrDataCenterStaleRecordsCache older than MaxCacheStaleness and FailOnStaleCache is true
ErrDataCenterRecordNotFoundTarget DC not in active records or not in ACTIVE state

​
Custom control plane

Implement the datacenter.ControlPlane interface:
  • Register, Heartbeat, SetState, ListActive, Watch, Deregister
See datacenter/controlplane/nats and datacenter/controlplane/etcd as reference implementations. Wire it in by passing the control plane to the datacenter config when creating the actor system.

​
